Rick's Wood Gear Clocks

Featuring The "Horizon" Clock Plans





  "The Horizon" clock is a beautiful clock that is functional and lots of fun to make!

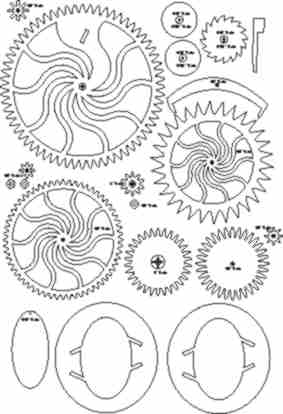

The plans are "full-scale," ready to use as cutting templates, so you only need to tack-glue the templates to wood and cut them out!  It's that simple!

List Of Materials Needed To Build This Clock
(The Finished Clock is 12"s Wide and 19"s High)

1 - 21” X 40” X ¼” Baltic Birch Plywood
1 - 4 1/2” X 11” X 1/8” Baltic Birch Plywood
1 - 2” ½” Dowel
1 - 53” ¼” Dowel ( one piece 48” dowel )
1 9" 1/8" Dowel
25’ 25 # test braided fishing line
1 1/4” Nylon or steel Washers
1 - 5-7 pound weight ( lead in a can or tube, Klockit sells a 1 9/16“ X
9 1/8” weight shell that can be filled with lead shot)
Turncraft Clocks 612-471-9573 also sells the weight shells and a brass pulley

Sample pages from the manual.
